JPC-12 HF Antennas for Ham Radio with Slide Regulator 7MHz-50MHz All Band Hf Vertical Antenna 40m-6m 8 Bands for Outdoor 4.1 Meter(13.5Ft) (M10)

JPC-12 HF Antennas for Ham Radio with Slide Regulator 7MHz-50MHz All Band Hf Vertical Antenna 40m-6m 8 Bands for Outdoor 4.1 Meter(13.5Ft) (M10)

$147.70 USD
$158.99 USD $147.70 USD
Sale Sold out

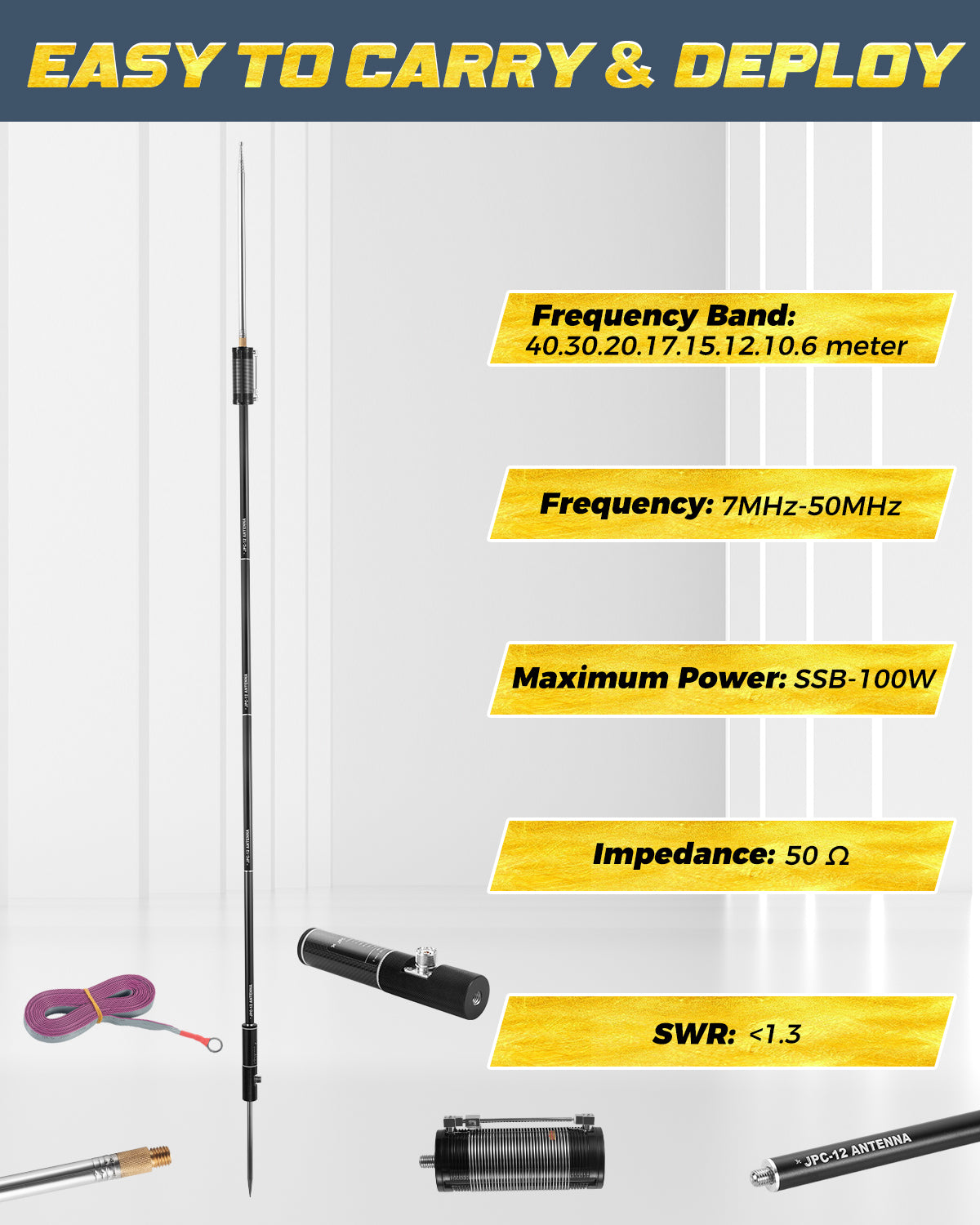

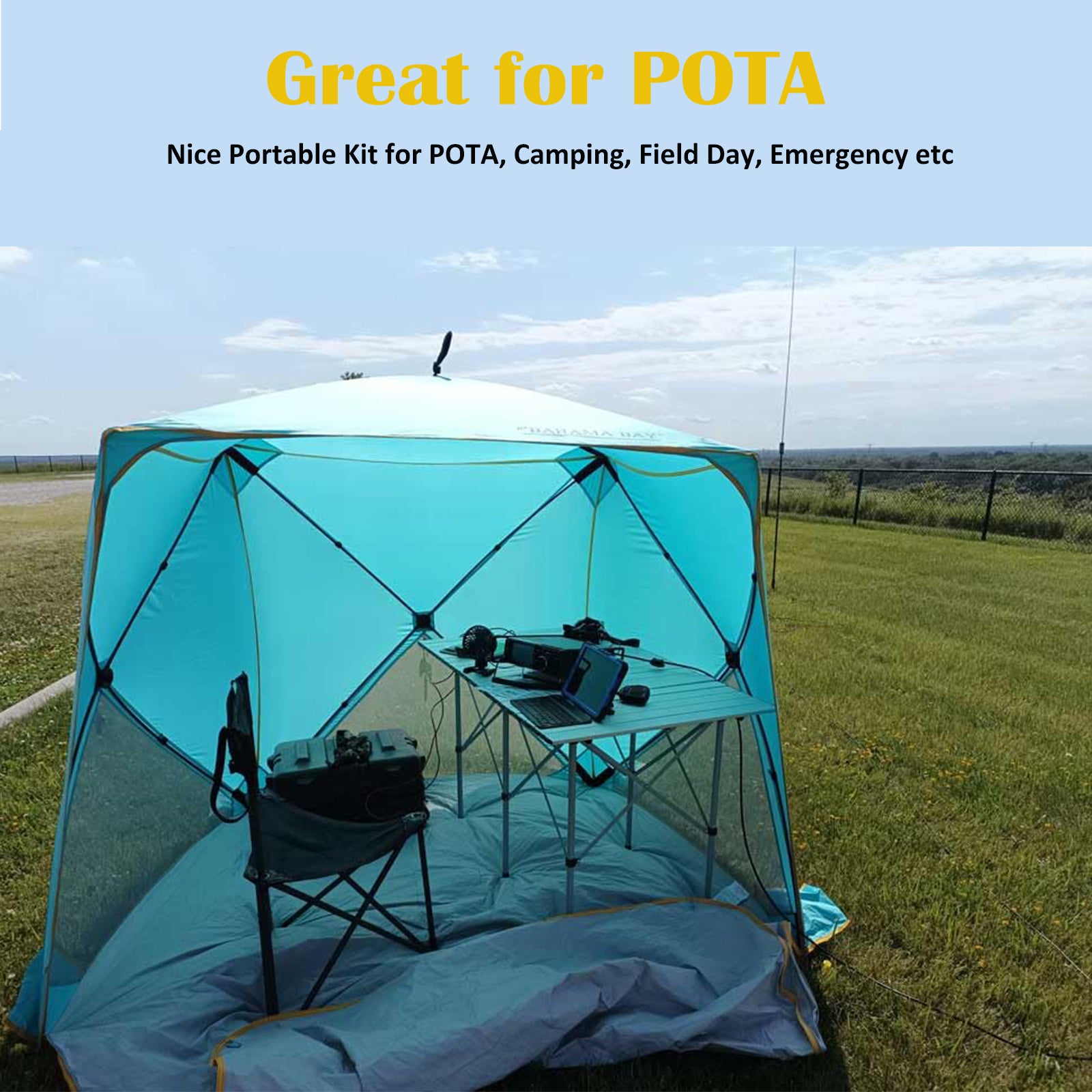

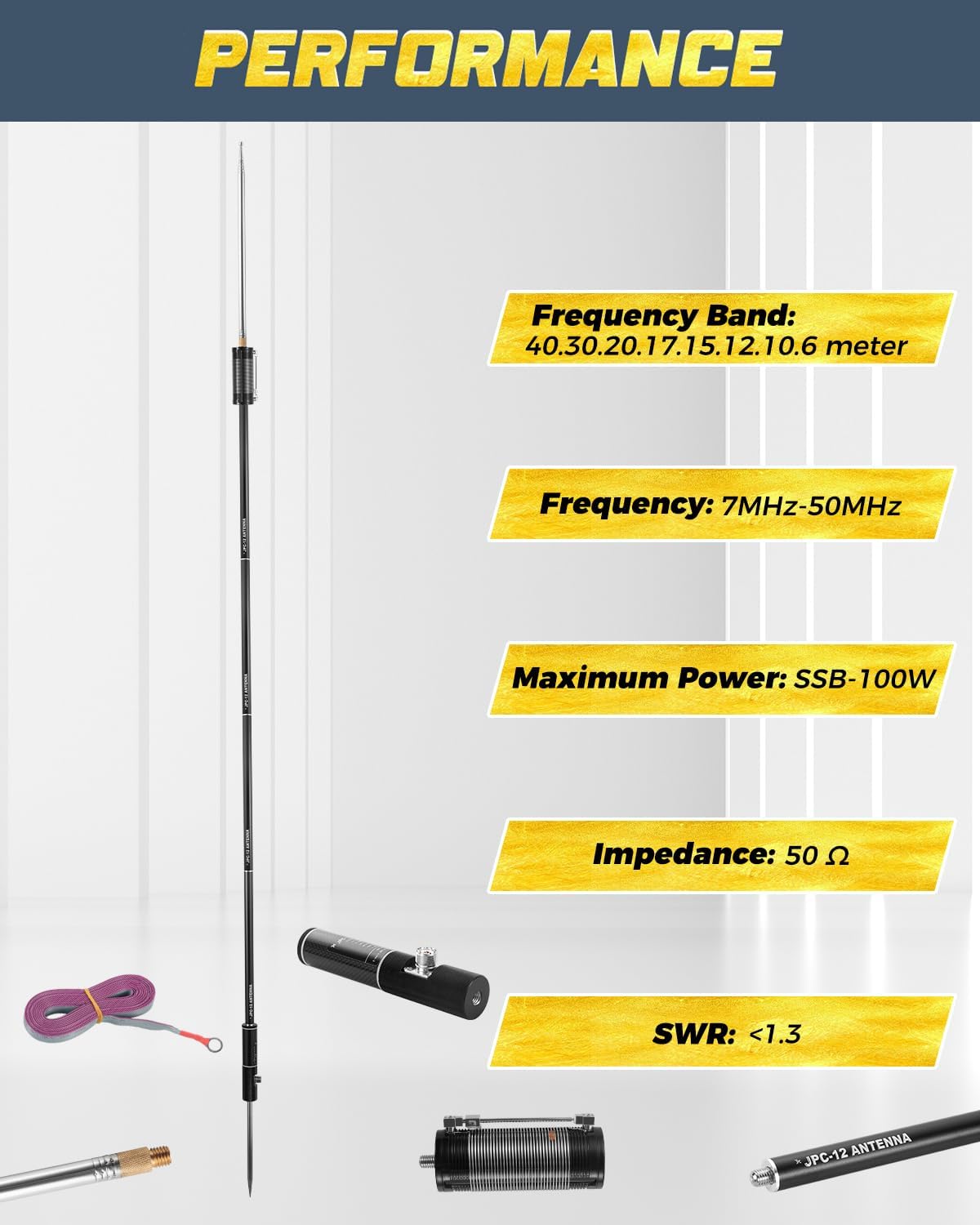

  • 【Multi Band HF Antenna】 Experience optimal performance with this hf multiband antenna, capable of working in 40.30.20.17.15.12.10.6 meter 8 bands. Its frequency range spans from 7-50MHz, with an impedance of 50Ω and a maximum power of SSB-100W. With SWR<1.3 on the 40m band and adjustable to 1.1 on other bands, enjoy a stable low standing wave ratio (SWR). Great for POTA/SOTA

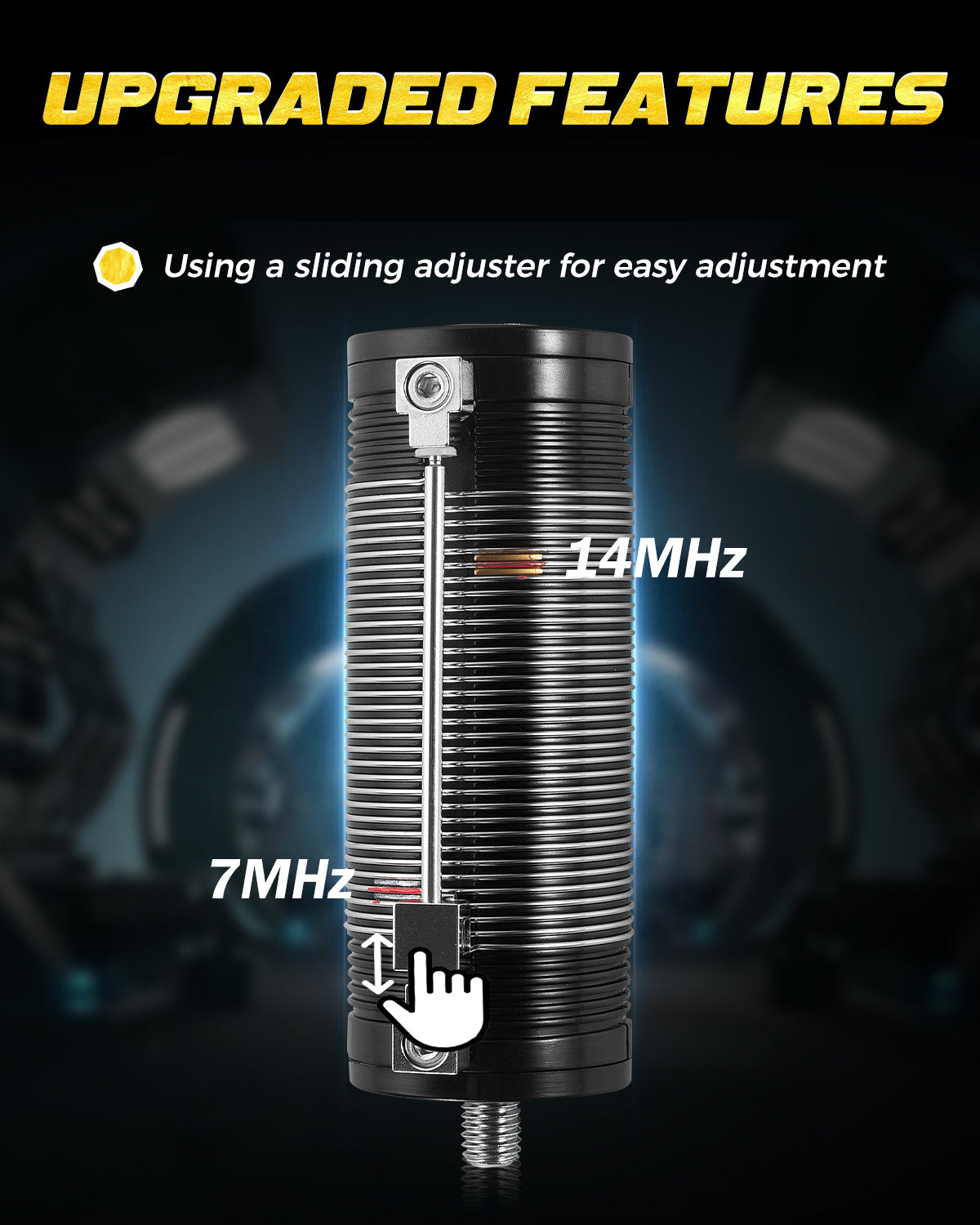

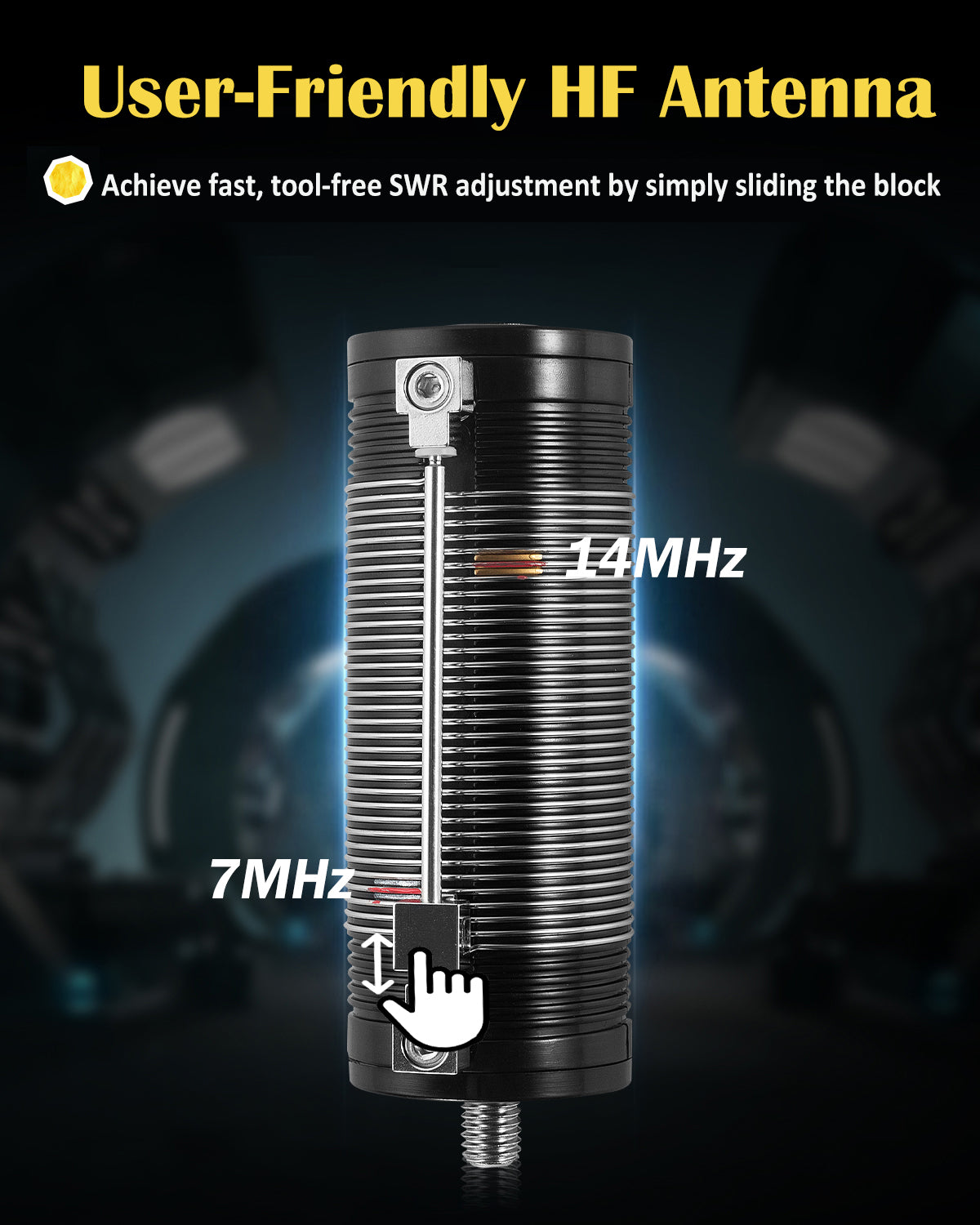

  • 【Avoid Noise】 The sensing coil has been optimized, and an additional spring has been added to the original design, increasing the force of the spring to ensure more reliable contact with the coil. The new version of the jpc-12 hf radio antenna features a sliding regulator that replaces the adjusting screws and plugs found on the old model. By simply sliding the adjustment block, adjusting the standing wave becomes straightforward and effortless
  • 【Enhanced Performance & Excellent Reception】 The JPC-12 ham radio hf antenna offers optimal signal reception and transmission with its low standing wave ratio (SWR) and efficient design, providing reliable performance and improved efficiency for both seasoned enthusiasts and beginners. Designed for transmitting and receiving HF and VHF radio signals, it is fully compatible with all Amateur Radio transceivers, enhancing your signal without needing an analyzer or tuner, though these can be beneficial

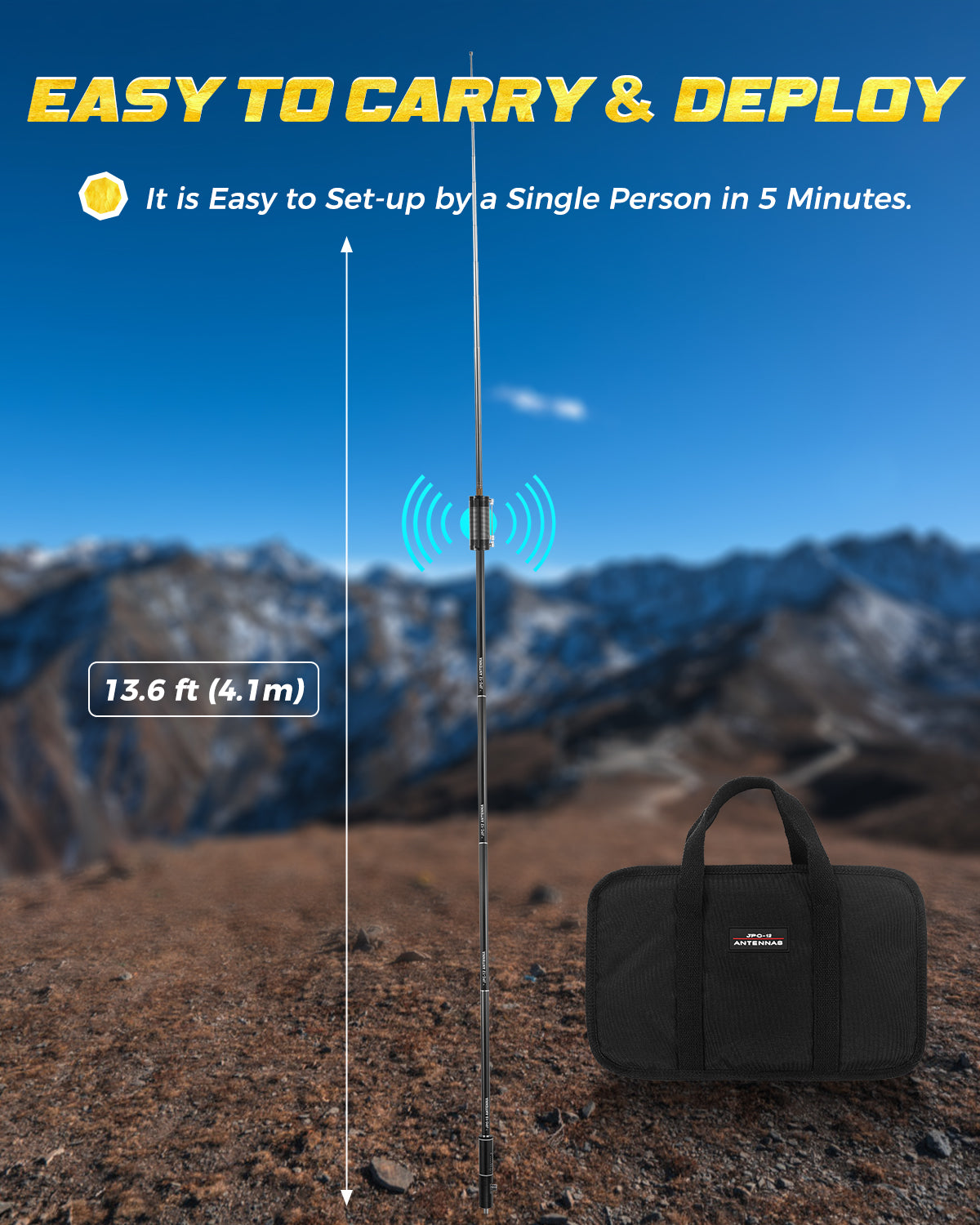

  • 【Easy to Deploy】This lightweight (1.35kg) portable hf antenna is easy to set up by one person in 5 minutes. Its user-friendly, split design allows for convenient portability and compact storage. Perfect for outdoor platforms, business trips, or balcony installations. Great for travel with its backpack-friendly size
  • 【Reference Data】 Gain reference data for specific frequencies: 7Mhz with 4 circles near the aluminum tube side, retracting the pull rod approximately 10cm, SWR: 1.1-1.3 (on the marked red line with silver). 14Mhz with 6 circles near the rod antenna, retracting the pull rod about 20cm, SWR: 1.1-1.3 (on the marked red line with gold). 21.4Mhz with 4 sections of aluminum tube plus 7 sections of rod antenna + 10cm, SWR:1.1-1.3. 29.6Mb with rod antenna only, fully extended and retracted about half section, SWR: 1.2. Note: Ensure shrapnel contacts marked coils only, avoiding adjacent coils

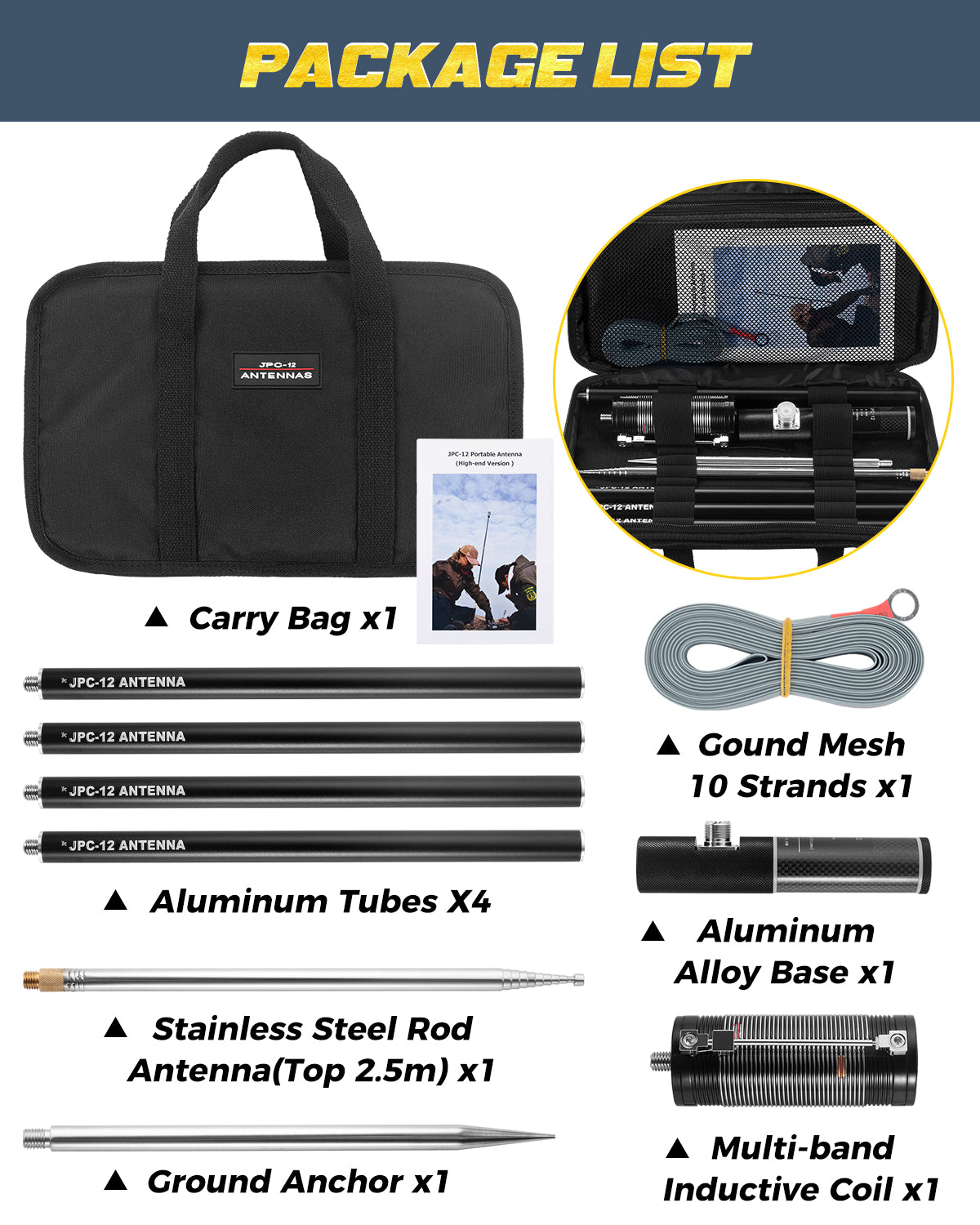

  • 【Package Contents】 The package contains Aluminum Tubes *4, Stainless Steel Rod Antenna (Top 2.5m) *1, Ground Anchor *1, Ground Mesh 10 Strands *1, Aluminum Alloy Base *1, and Multi-band Inductive Coil *1. The antenna is stable, durable, and corrosion-resistant, designed for easy installation in grass or sand. All components pack into a compact black carry bag
  • 【NOTE】The theards on the aluminum rods is M10 size
