Upgraded NanoVNA-F V3 Vector Network Analyzer 1MHz–6GHz Antenna Analyzer HF VHF UHF VNA Measuring S-Parameters Voltage Standing Wave Ratio Phase Delay Smith Chart 4.3 inch Screen & 4500mAh

Upgraded NanoVNA-F V3 Vector Network Analyzer 1MHz–6GHz Antenna Analyzer HF VHF UHF VNA Measuring S-Parameters Voltage Standing Wave Ratio Phase Delay Smith Chart 4.3 inch Screen & 4500mAh

$268.99 USD
$299.99 USD $268.99 USD
Sale Sold out

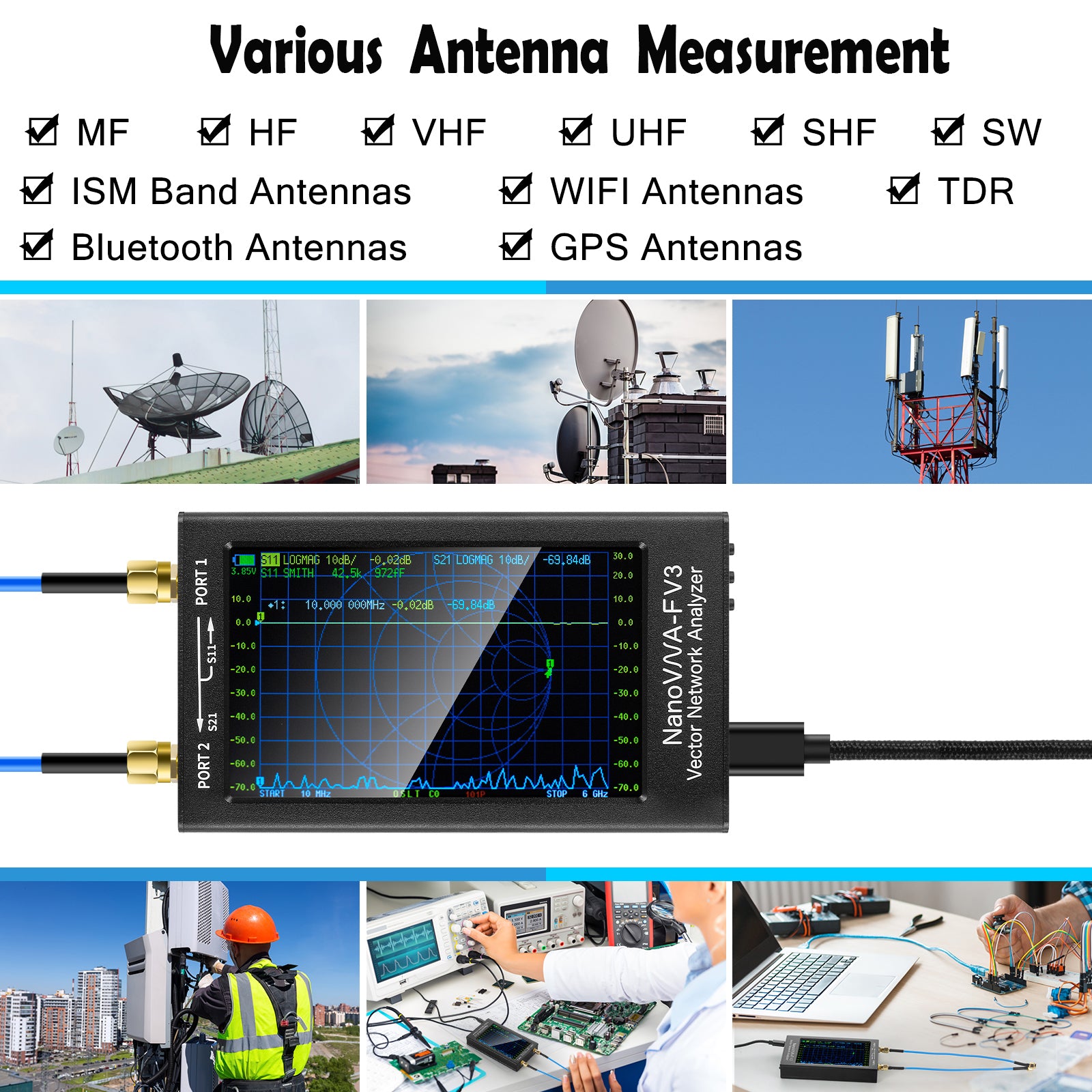

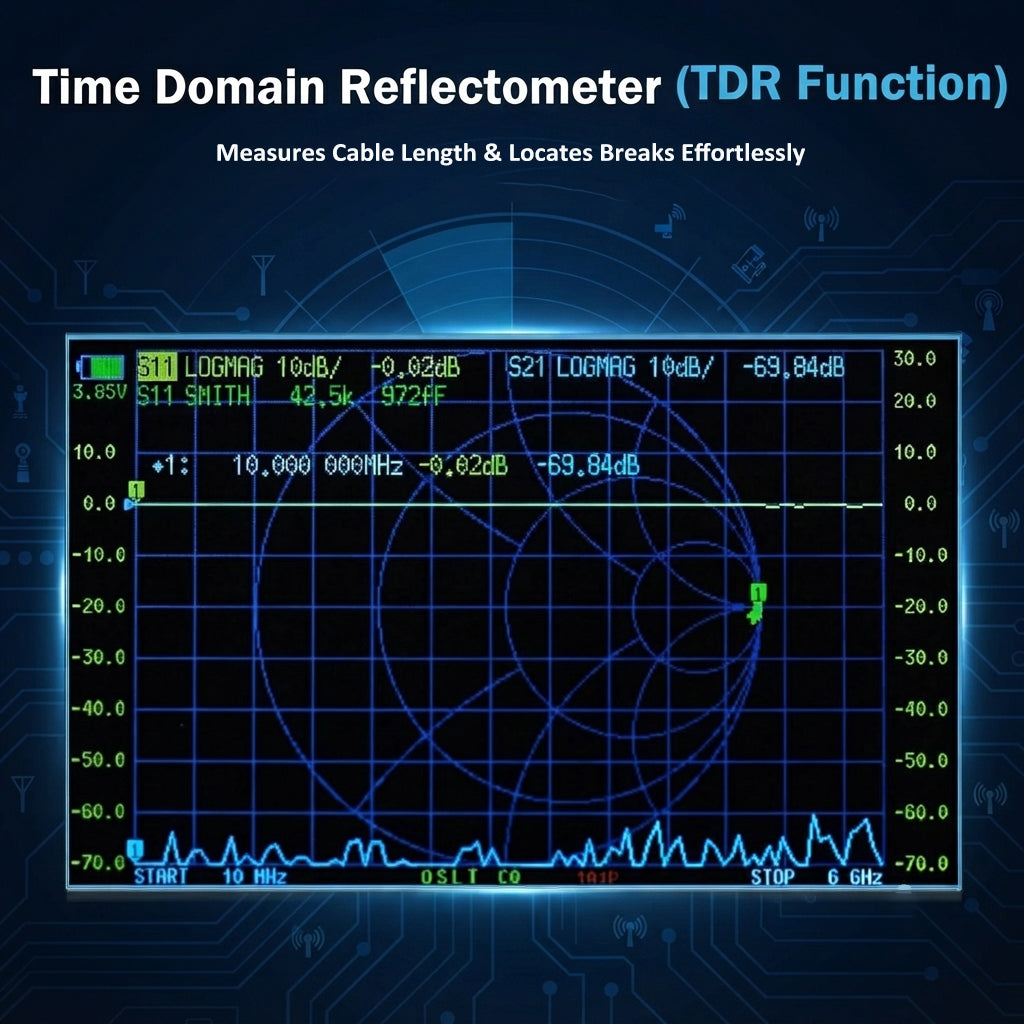

  • 【Powerful Function】NanoVNA-F V3 nano vna antenna analyzer is suitable for antenna testing of MF/HF/VHF/UHF/SHF bands, such as shortwave antennas, ISM band antennas, WiFi antennas, Bluetooth antennas, GPS antennas, etc. It can also be used to measure filters, amplifiers, attenuators, cables, power dividers, couplers, duplexers and other RF components. NanoVNA-F V3 supports a variety of display formats: Log Mag, Linear Mag, Phase, Smith R+jX, Smith R+L/C, VSWR, Polar, Group delay, Resistance, Reactance, etc. In addition, NanoVNA-F V3 supports TDR function which is useful for cable lengths measurement

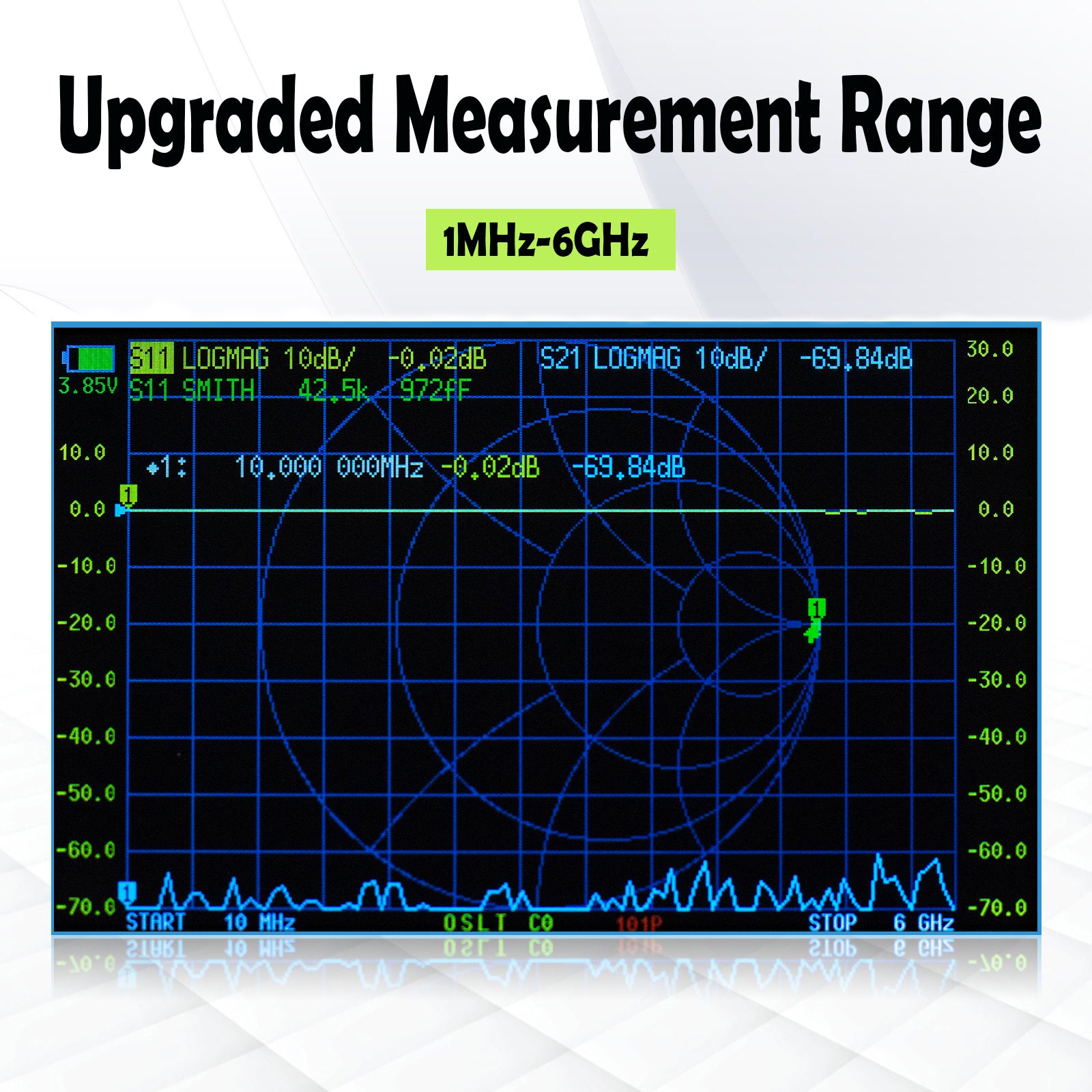

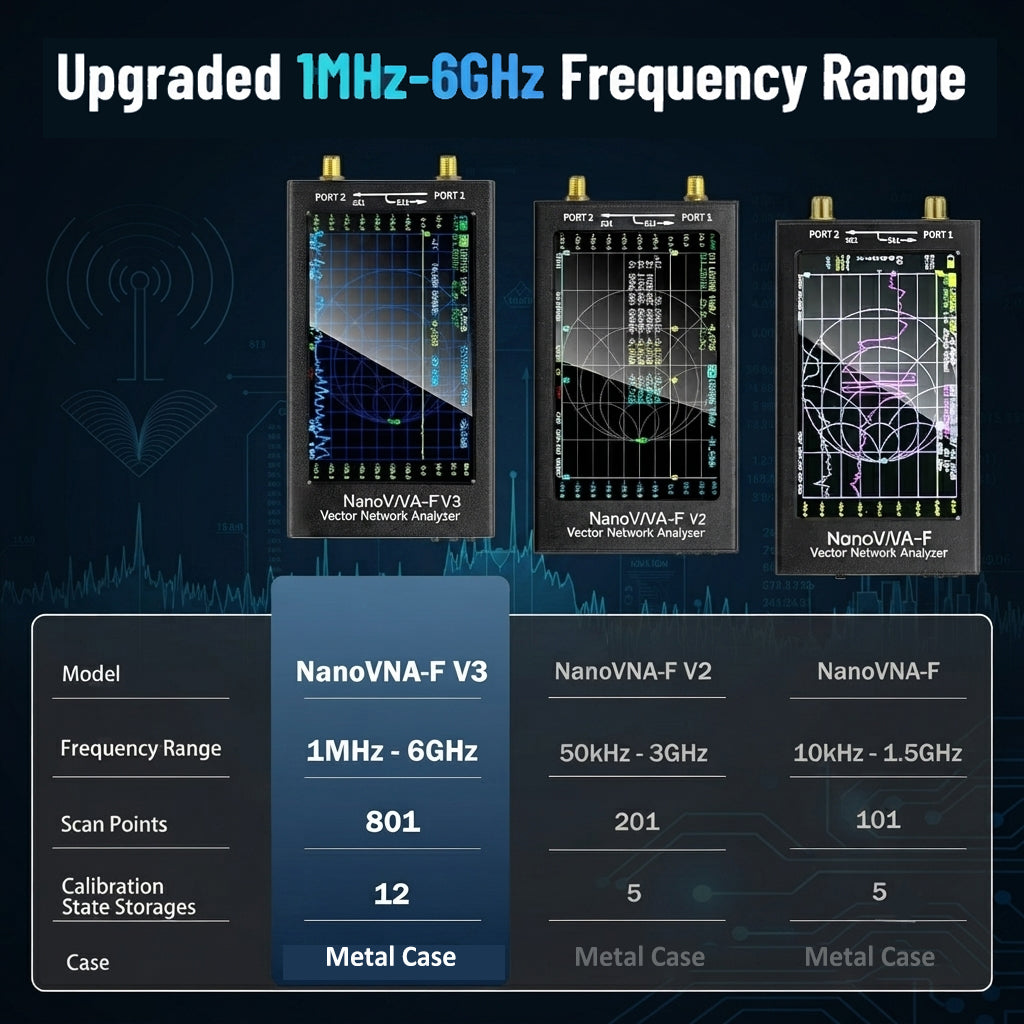

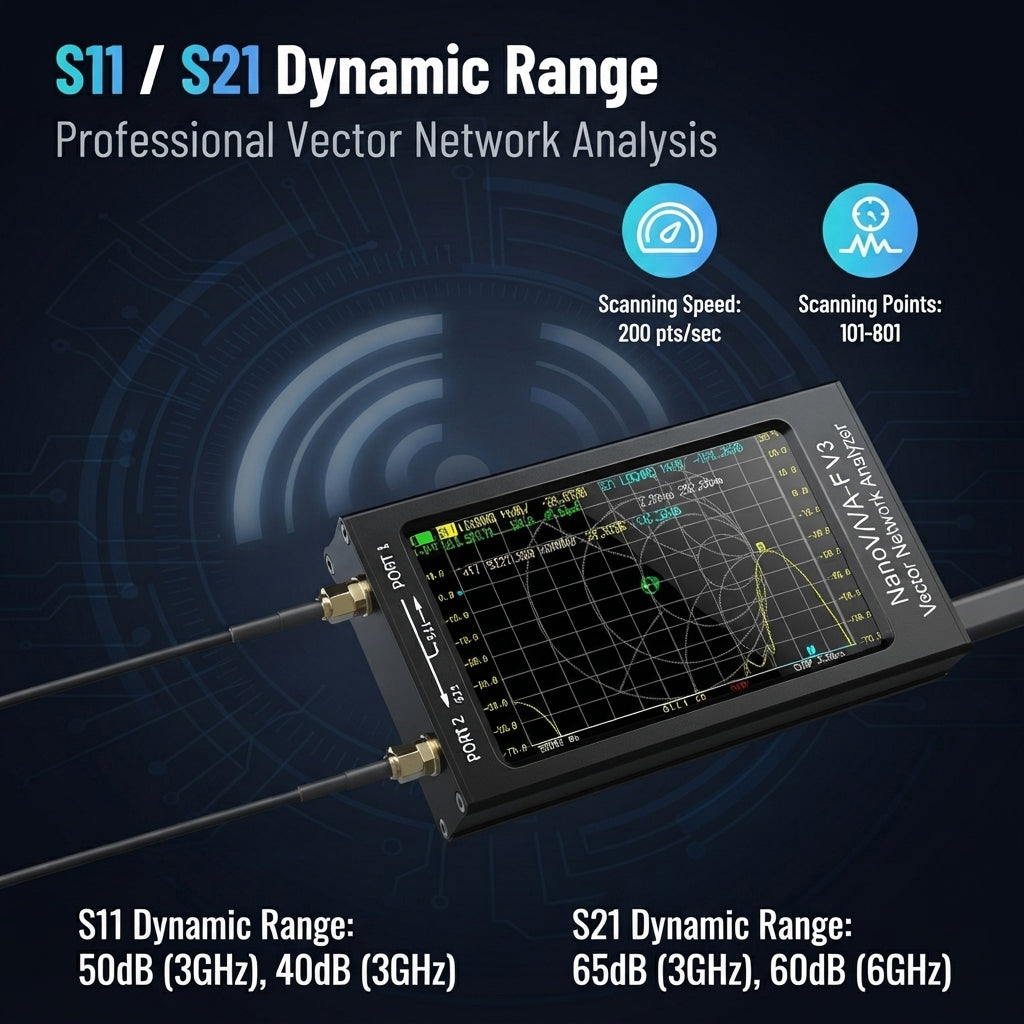

  • 【Upgraded Measurement Range】NanoVNA-F V3 has upgraded its frequency range from 1MHz to 6GHz. It can be used for S11 and S21 measurements. The S21 dynamic range of NanoVNA-F V3 is 65 dB, while the S11 dynamic range is 50 dB

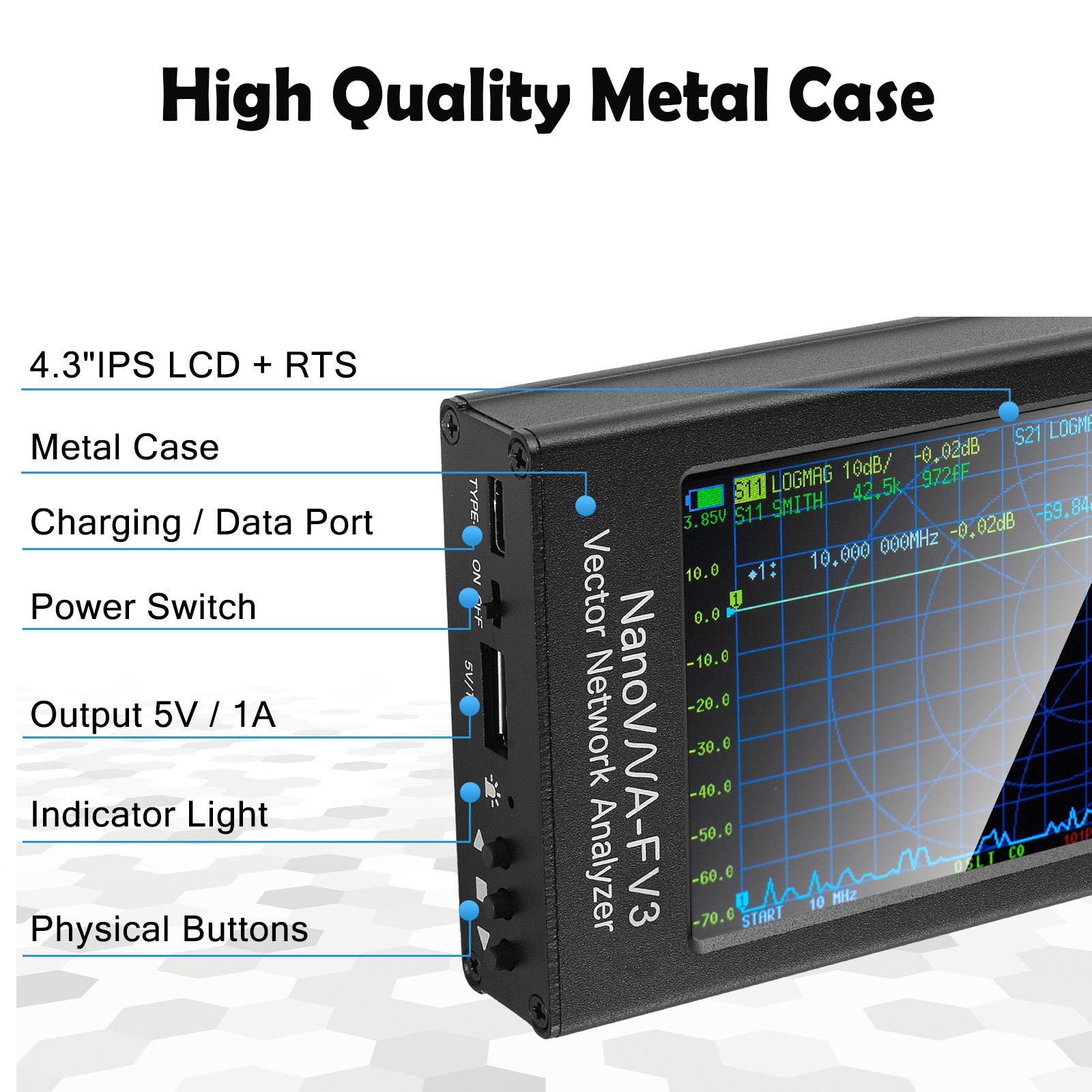

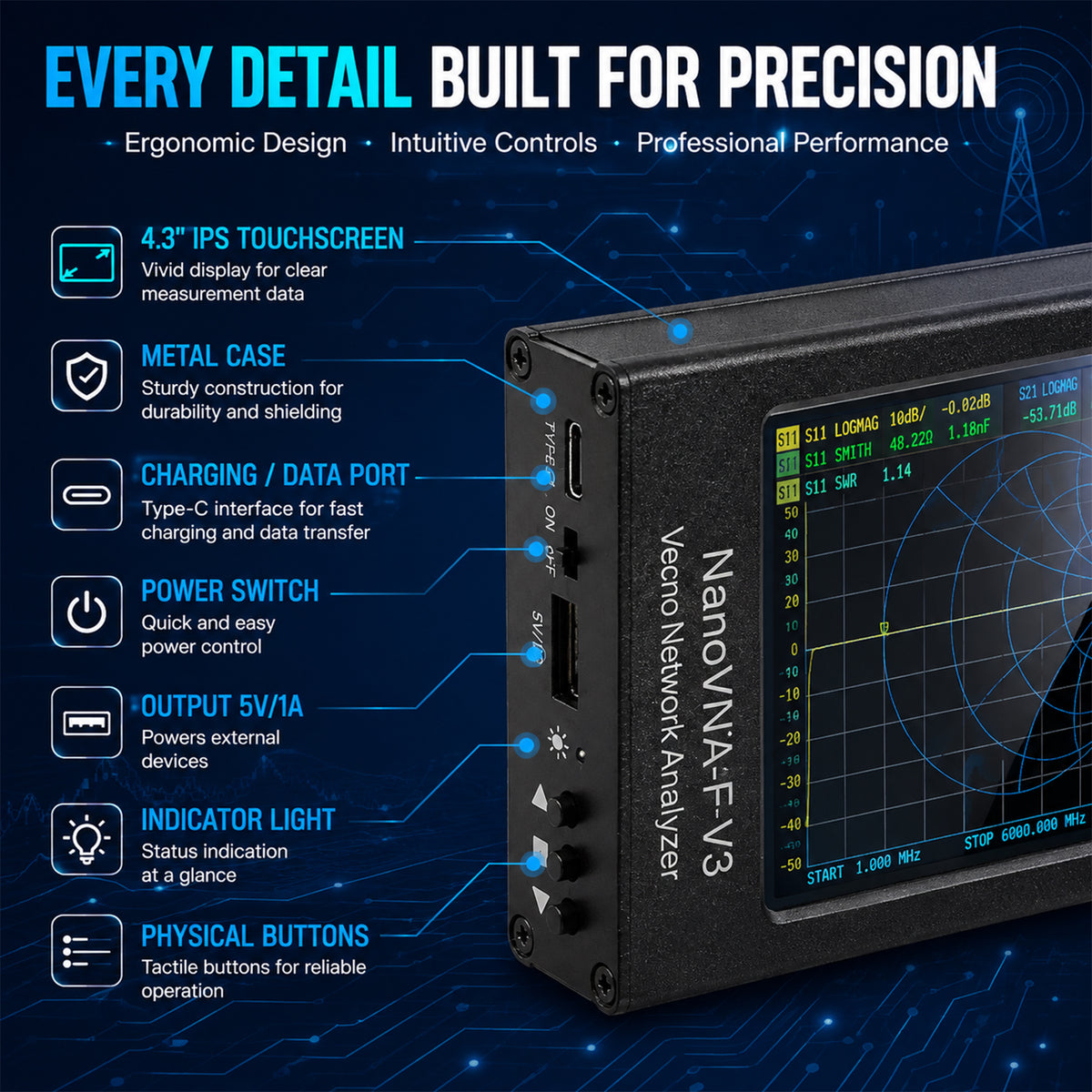

  • 【Excellent Accuracy】The construction of NanoVNA-F V3 is solid, designed with high-quality metal casing, durable and well shielded, improving measurement accuracy
  • 【Improved Scanning Points】 With the optimally designed signal processing system, the scan speed of NanoVNA-F V3 is up to 200 points/s and the maximum scanning points is up to 801. The RF interface of NanoVNA-F V3 is SMA connector witch can be used to connect DUTs directly

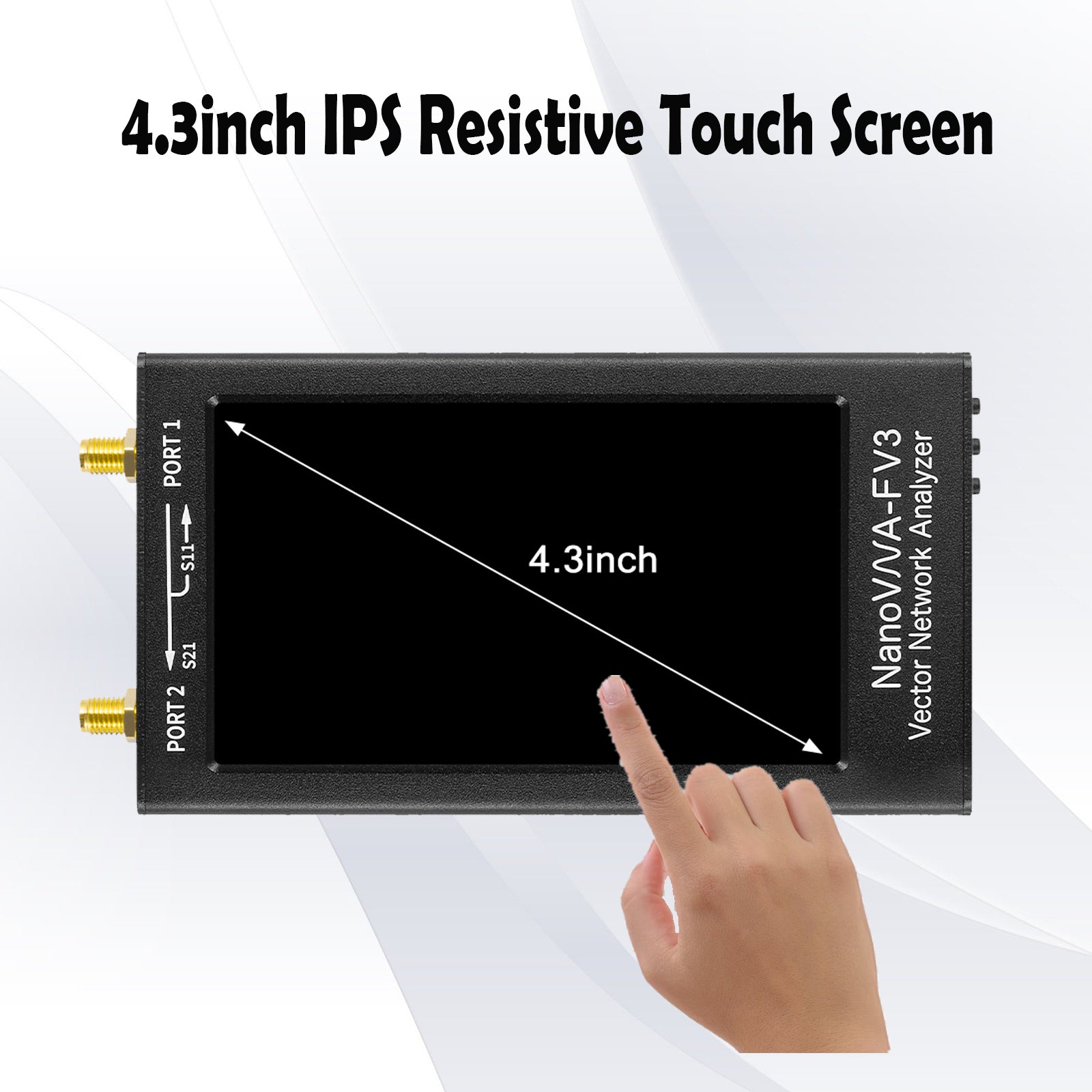

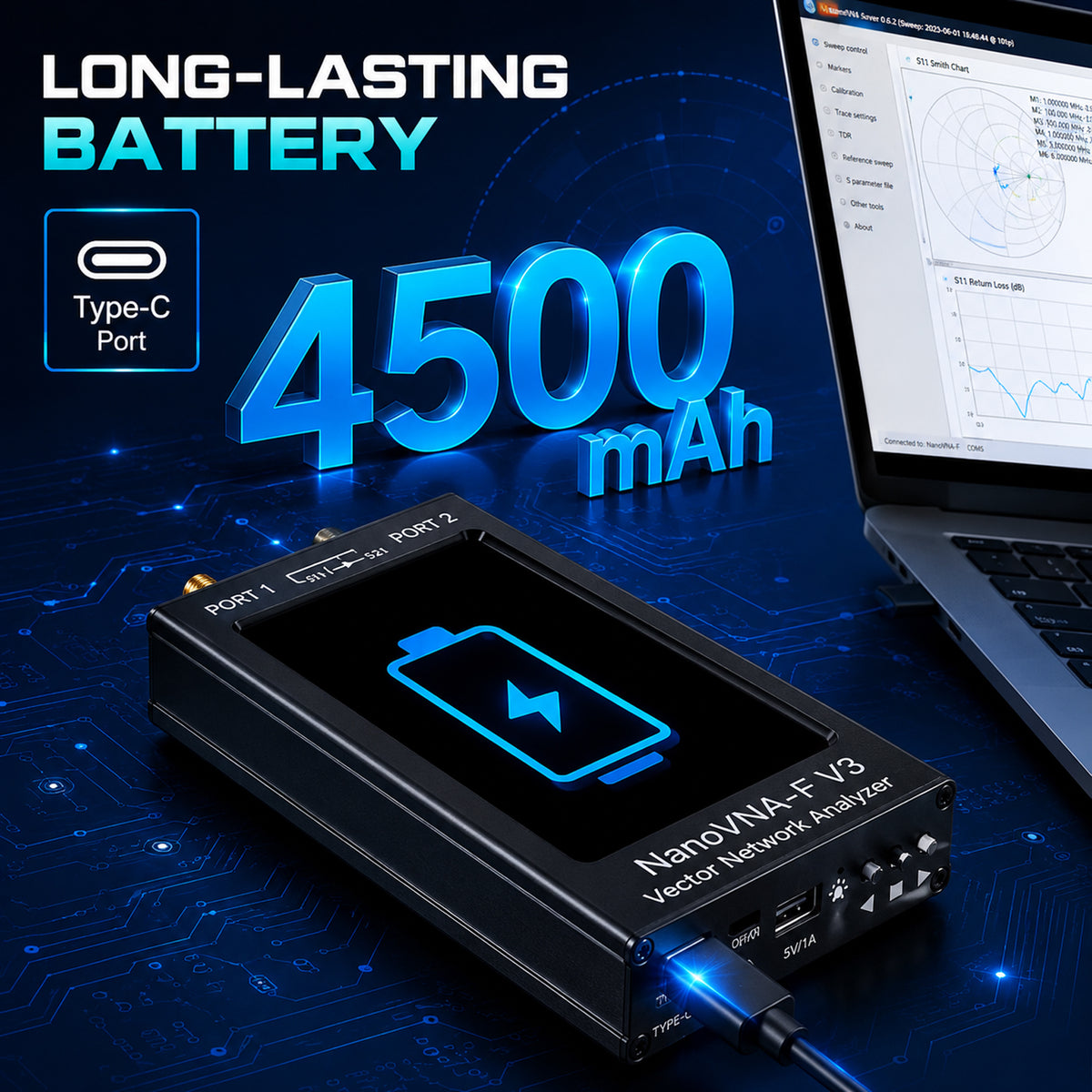

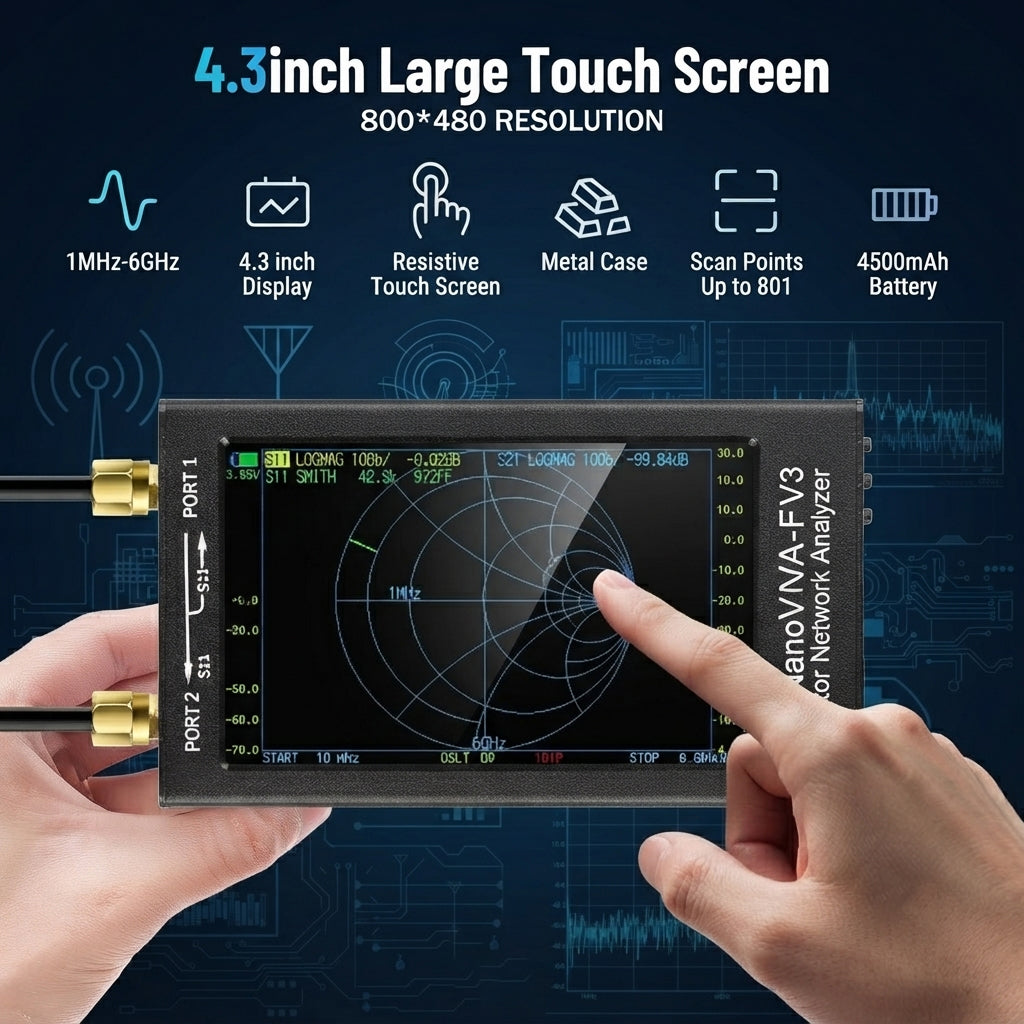

  • 【Large Screen & Long Standby Time】The nanovna antenna analyzer adopts a 4.3 inch high brightness IPS resistive touch screen, which is sensitive to touch and responsive. Equipped with a protective film to protect the screen, the stylus makes it more convenient for you to use. The NanoVNA-V3 has 4500mAh lithium-ion batteries with a battery life of up to 5 hours. The charging interface is USB Type-C, and the Type-C cable can be used to charge the device and also for data transfer
