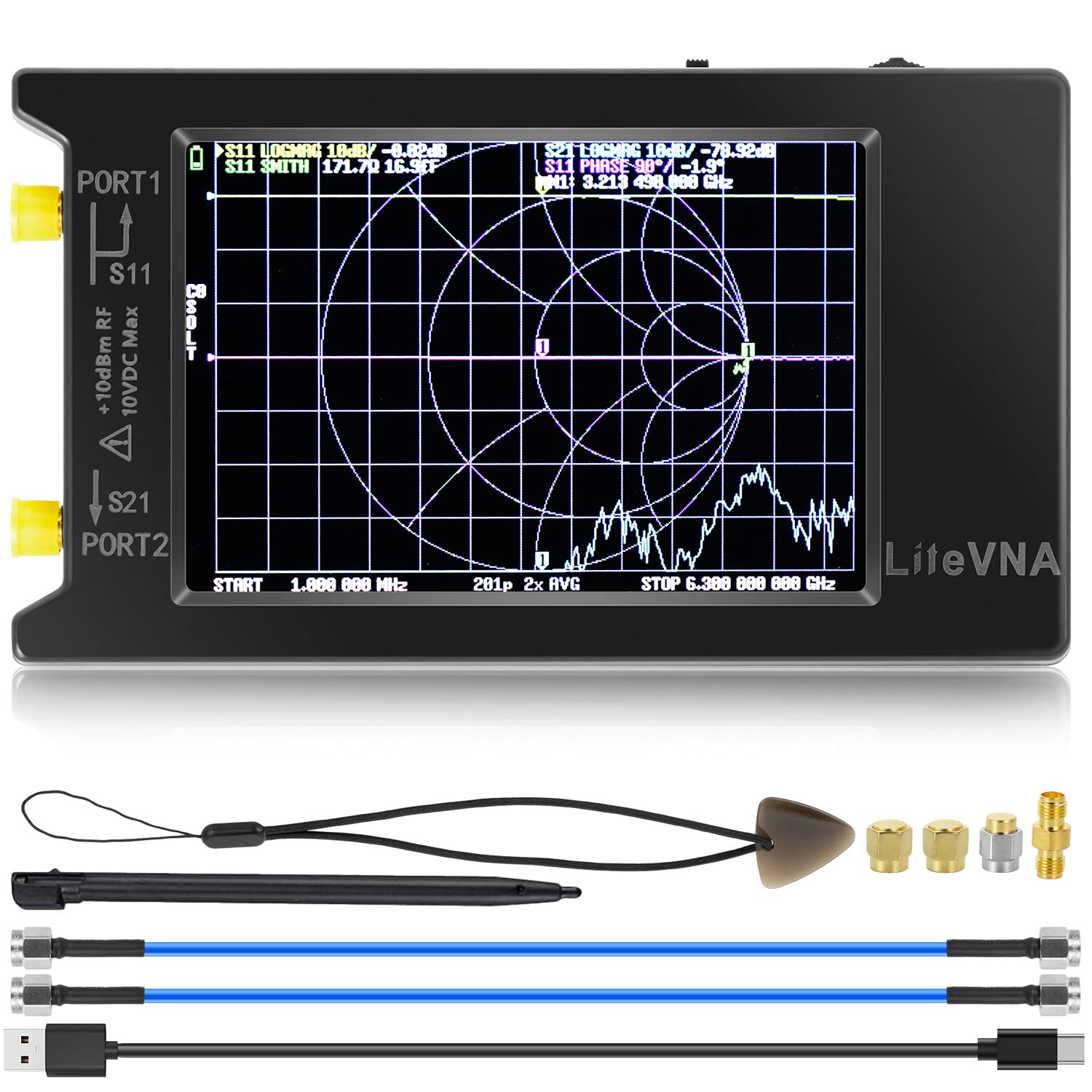

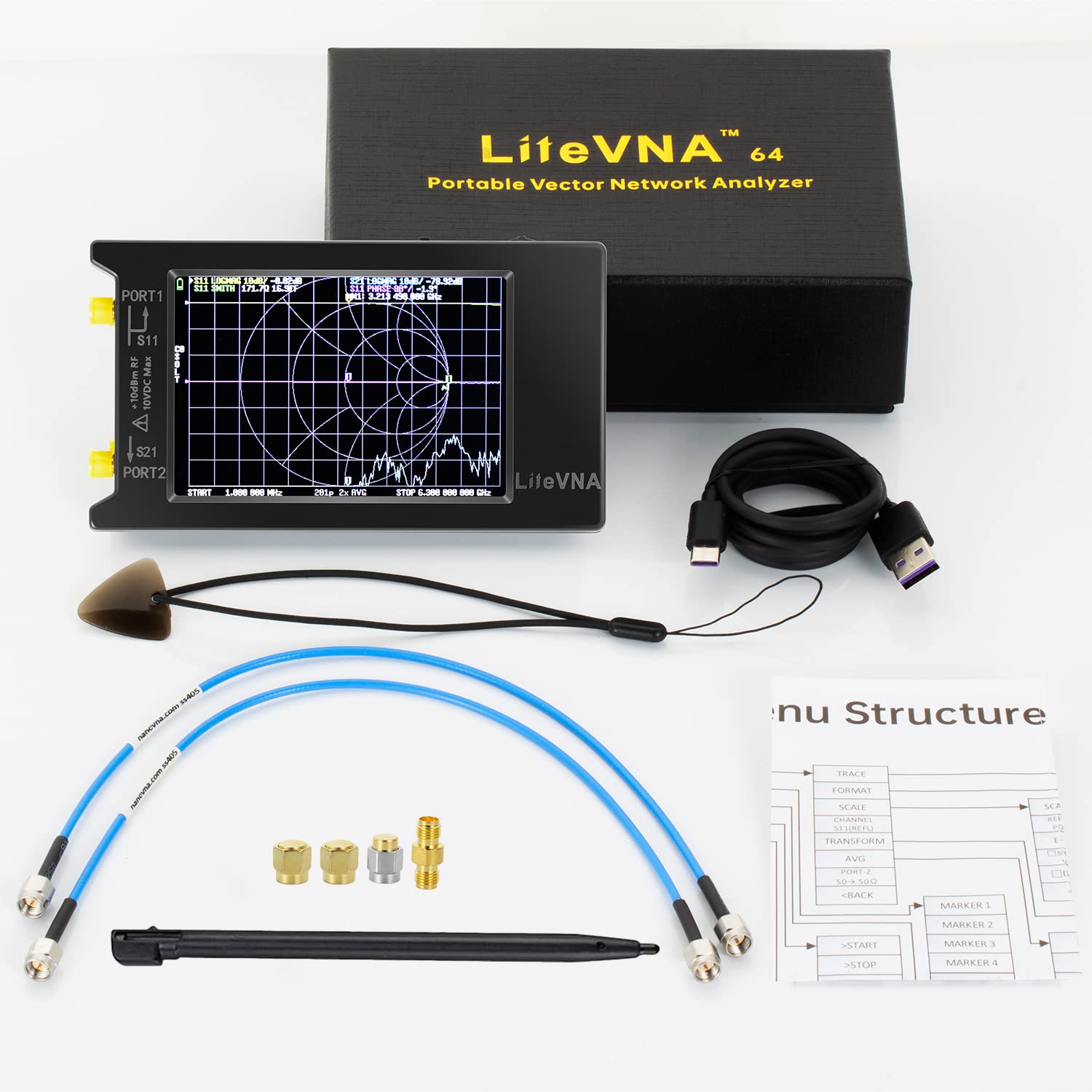

Upgraded NanoVNA Vector Network Analyzer 50kHz-6.3GHz 4 inch Antenna Analyzer with MicroSD Slot, Support Data Storage Measure S Parameters HF SWR Phase Delay Smith Chart

Upgraded NanoVNA Vector Network Analyzer 50kHz-6.3GHz 4 inch Antenna Analyzer with MicroSD Slot, Support Data Storage Measure S Parameters HF SWR Phase Delay Smith Chart

$239.99 USD
$239.99 USD
Sale Sold out

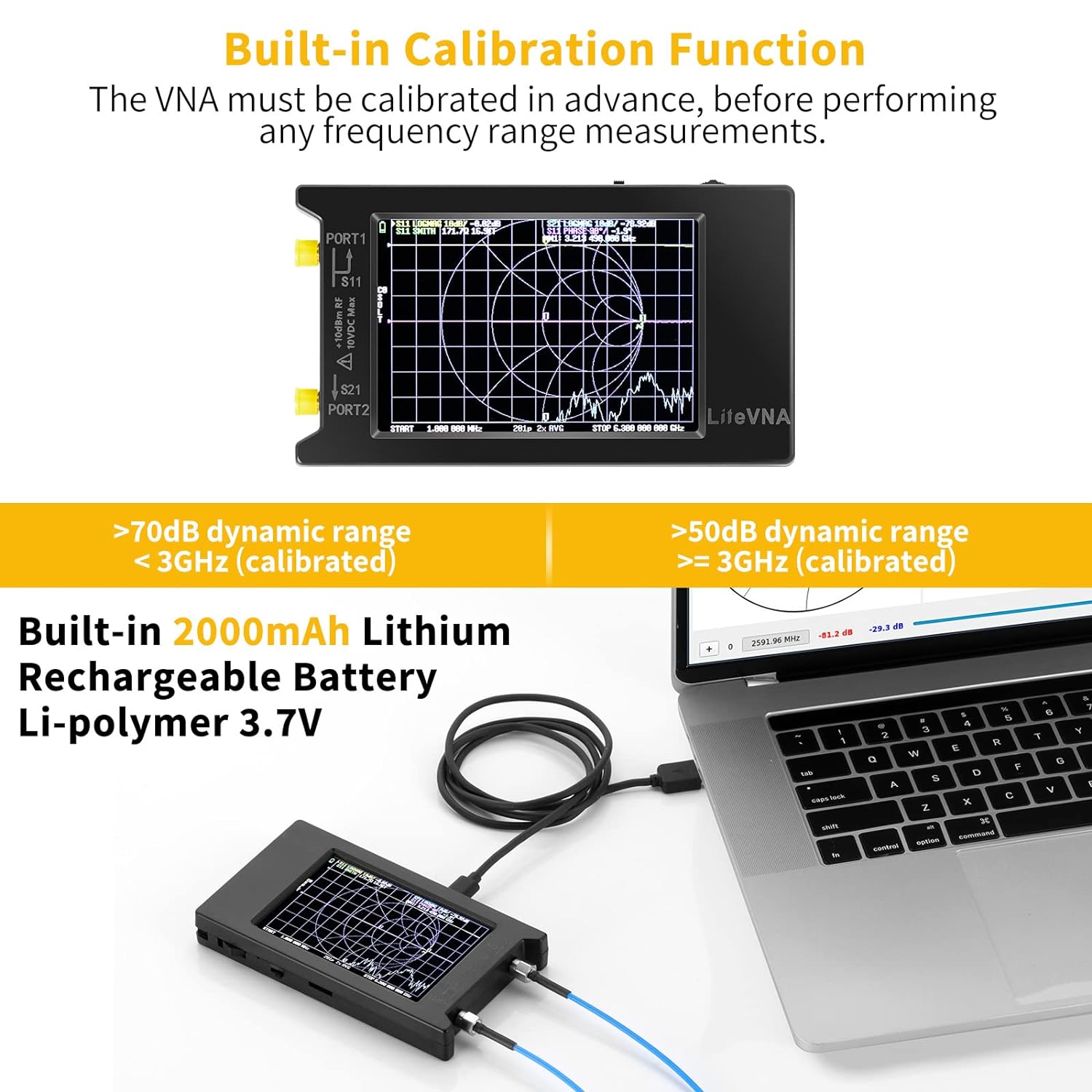

  • 【The Latest Portable NanoVNA】 Based on and combined with NanoVNA and SAA2 VNA, the vna is as portable as NanoVNA, while can accomplish 50kHz-6.3GHz ultra-wide measurement frequency range as a tiny handheld NanoVNA. The 3.95"(approx 4'') touchscreen (480×320) version of the VNA 64 maintains the same dimensions and operates the same as the NanoVNA-H4 with 2000mAh rechargeable battery
  • 【Upgraded Performance】 In order to minimize the power consumption and the size, the VNA antenna analyzer is only equipped with one mixer; Note: Random Loud Noises might occur when connecting to the external power, due to the resonance between the external power frequency and the switch power

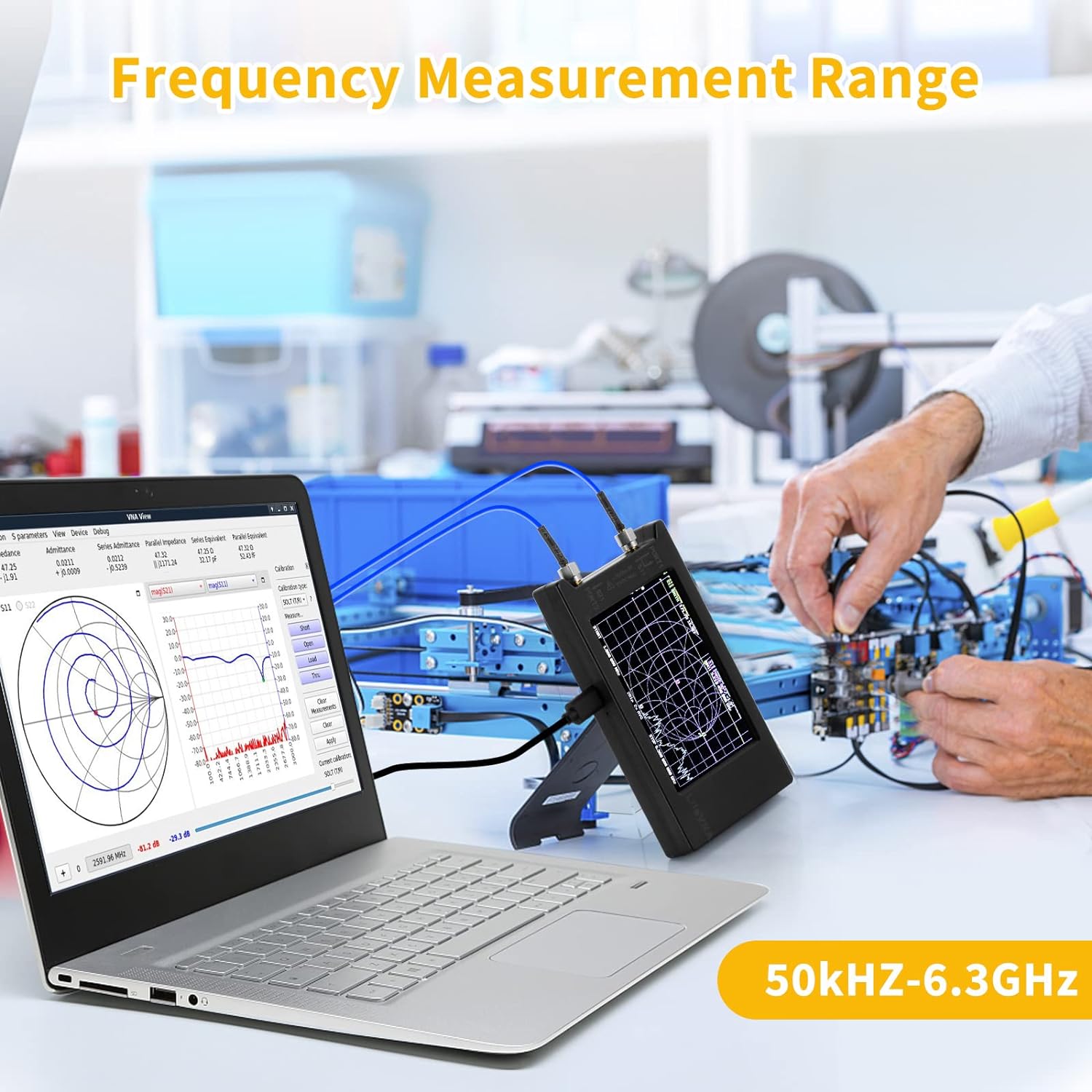

  • 【Ultra-wide Frequency Range】 The updated tiny NanoVNA Maximum frequency range is up to 6.3GHz with improved precision and accuracy, not only can the VNA meets the needs of common amateur radio and IOT application, but also adapts to the new 5GHz test, applying the newest 5.8GHz wifi and image transformation. (Note: Before any measurements are performed, the VNA must be calibrated)

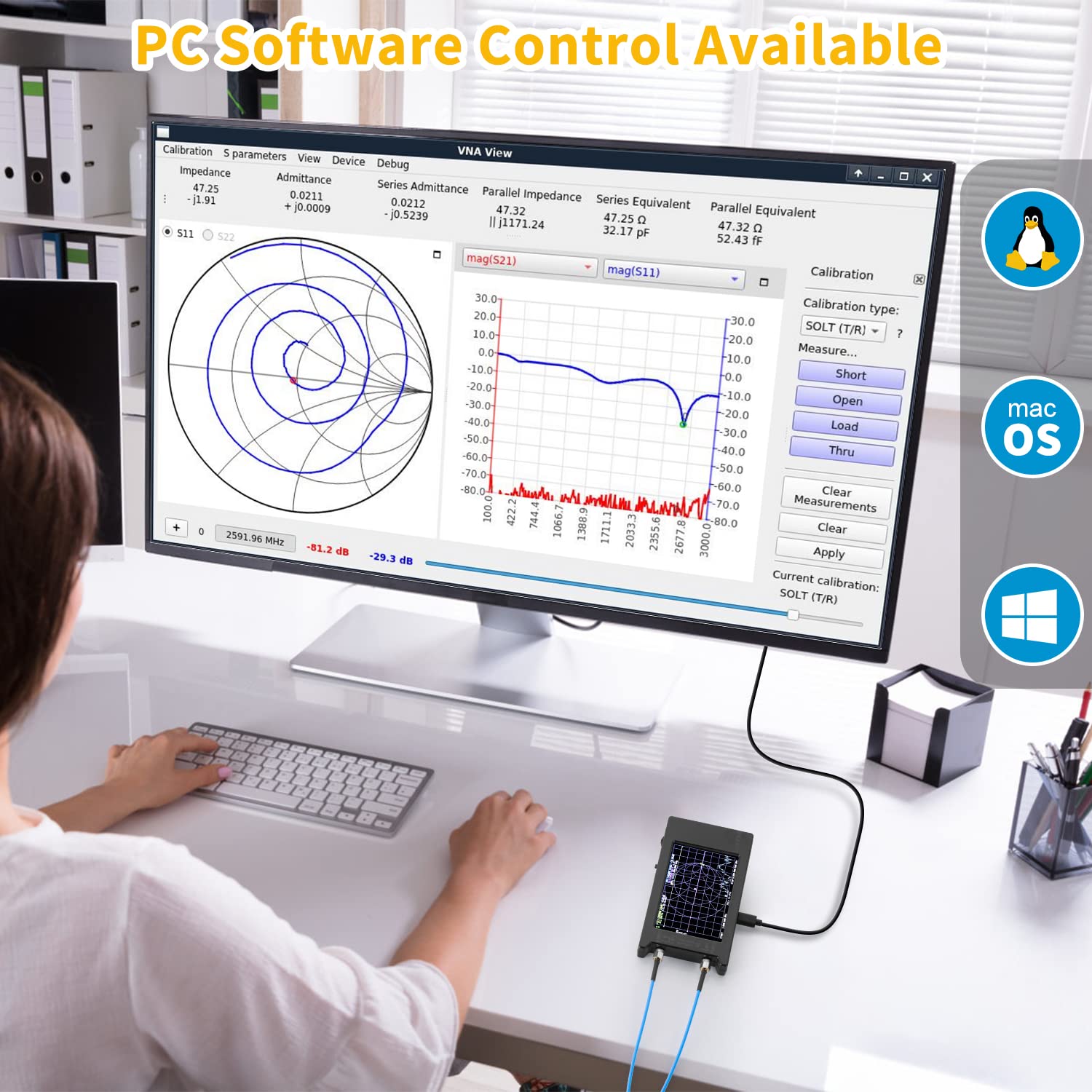

  • 【PC CONTROL】The upgraded nano vna analyzer supports PC control, compatible with Linux, Windows (7+), and Mac OS (10.11+). Can export Touchstone (snp) files for various radio design and simulation software through PC software

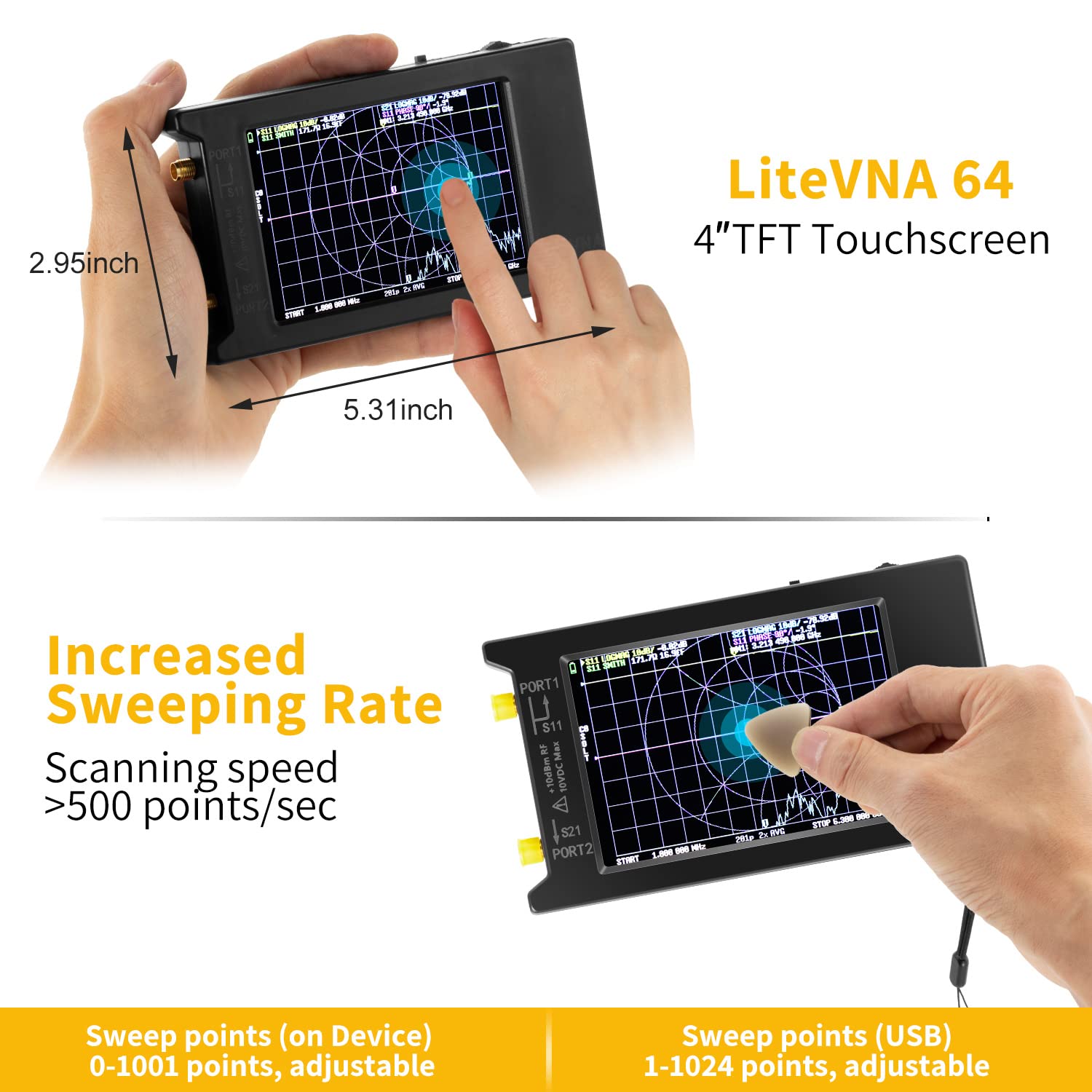

  • 【Combination and Improvement】 After we integrated community feedback about previous versions of the VNAs, VNA was created and now has the ability to measure the ultra-wide frequency range, except that it also brings in a swifter sweeping rate (>550 points/s) and more sweeping points(adjustable 10-1001 points on device, adjustable 1-1024 points thru USB)
  • combining the easy operating system of the former NanoVNA, which now can be conveniently used for the measurement tool at site. ( Not only testing the standing wave impedance of the antenna but also debugging the duplexer, the insertion loss of the filter, the isolation and testing the attenuation of the cable, shortened the coefficient, the phase, and the amplification of the antenna amplifier.)
